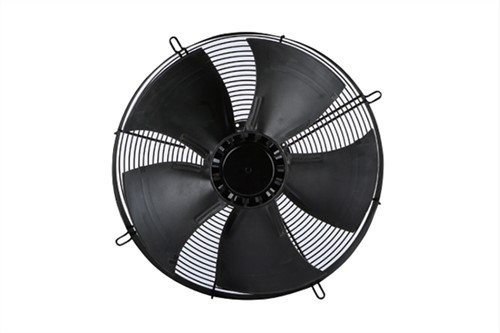

Product Introduction

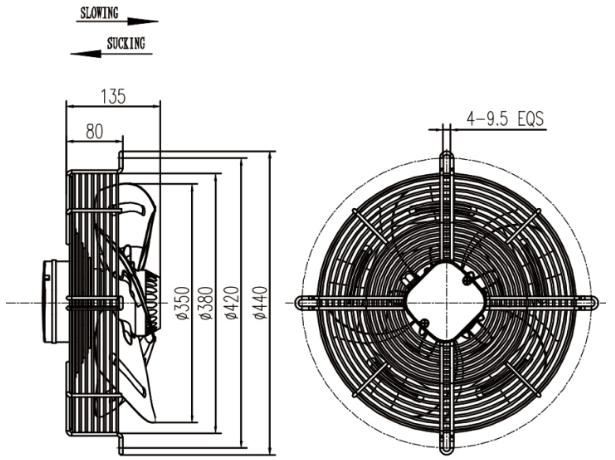

The diameter of the fan blade | 350mm | |
Material | Guard Grill | steel, phosphated and coated in black plastic |
Wall ring | sheet steel, galvanized and coated in black plastic | |
blades | sheet steel | |
Rotor | encased in aluminium | |
Number of blades | 5 | |
Direction of rotation | Suction—direction of air flow "S" counter-clockwise, | |
Blowing—direction of air flow "B" clockwise seen on rotor | ||
Type of protection | IP54 or IP44 | |
Insulation class | Class B or Class F | |
Approvals | UL, CE, CCC , ROHS and so on | |
Mode of operation | Continuous operation(S1) | |
Bearings | Maintenance- free ball bearings | |
Ambient temperature | -30℃ to 60℃ | |
Motor protection | without TOP, TOP wired internally | |
Cable exit | lateral | |
Protection class | I | |
Advantage | YWF series axial fan with high static pressure and large air flow, have single phase, three phase, and different voltage levels, and 50HZ, 60HZ, according to the client’s different needs. |
Product Parameter (specification)
(1)For Air Compressor:
YWF350 usually use in air compressor of 7.5KW
Model | Voltage V | Frequency | Current | Input Power | Speed | Max Air Flow M³/H | Capacitor | Noise |
YWF4E350 | 220 | 50 | 0.7 | 150 | 1360 | 3000 | 4 | 64 |
YWF4D350 | 380 | 50 | 0.42 | 150 | 1350 | 3000 | / | 64 |
(2)For Refrigeration and others:
Model | Voltage | Frequency | Current | Input Power | Speed | Max Air Flow | Capacitor | Noise | Curve |
YWF4E350 | 230 | 50/60 | 0.65/0.8 | 150/180 | 1350/1550 | 2700/3100 | 4 | 64/67 | ①② |
YWF4D350 | 400Y | 50/60 | 0.42/0.38 | 145/180 | 1350/1550 | 2700/3100 | / | 64/67 | |
YWF4E350-7P | 230 | 50/60 | 0.66/0.8 | 145/185 | 1350/1480 | 2680/2930 | 4 | 64/68 | ③④ |
YWF6E350 | 230 | 50/60 | 0.35/0.4 | 75/85 | 910/1060 | 1700/1950 | 3 | 55/58 | ⑤⑥ |
YWF6D350 | 400Y | 50/60 | 0.25/0.22 | 85/80 | 930/1050 | 1700/1950 | / | 55/58 |
Product feature and application
(1) Product feature:
Compact structure
Specialized design
Refined process control
Simple Installation
High efficiency and low noise
Long service life
Application
Ventilation | Buildings, parking lots and so on |
Refrigeration | Refrigerator, Air cooler, refrigerating machine and so on |
Heat dissipation | HAVC, Air compressor, Dehumidifier, Evaporator, Wall fan, Condenser, Dryer, AHU, Ice machine and so on |

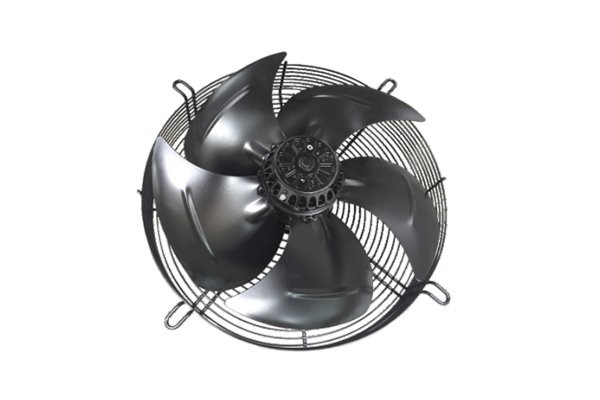

Production details
