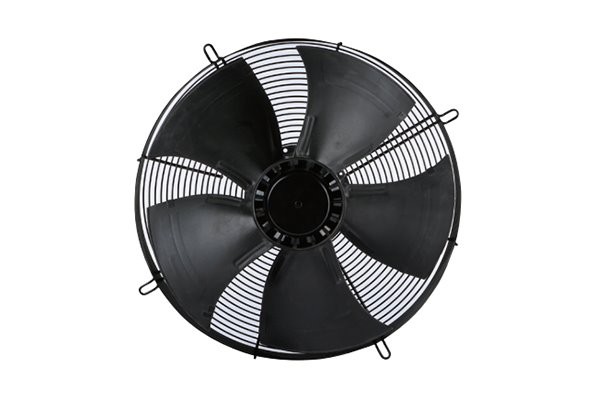

Product Introduction

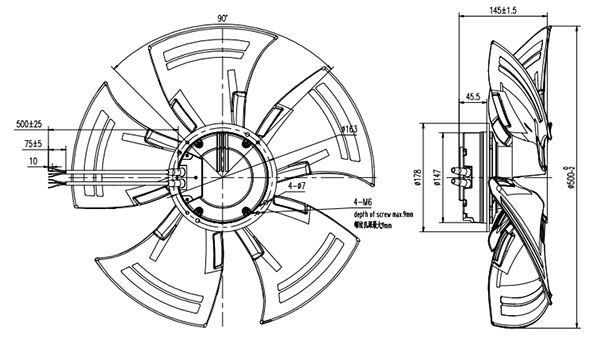

| The diameter of the fan blade | 500mm | |
Material | blades | steel |
Rotor | steel | |
Motor technology | EC | |
Mounting position | Any | |
Type of protection | IP44 | |
Insulation class | Class F | |
Approvals | CE, CCC | |
Technical feature | 0-10V/PWM/RS-485 | |
Protection | Over Voltage/ Lock Rotor | |
Ambient temperature | -20℃ to 50℃ | |
Advantage | EC Axial Fan diameter is from 300mm to 500mm, features of quiet, high efficiency, flexible controlling, conform to ErP 2015. | |
Product Parameter (specification)
| Model | Voltage(V) | Input PowerW | FrequencyHz | Speedrpm |
ECG500A230 | AC 200~270 | 350 | 50/60 | 1100 |
Product feature and application
(1) Product feature:
●Compact structure
●Specialized design
●Refined process control
●Simple Installation
●High efficiency and low noise
●Long service life
Application
Ventilation | Buildings, parking lots and so on |
Refrigeration | Refrigerator, Air cooler, refrigerating machine and so on |
Heat dissipation | HAVC, Air compressor, Dehumidifier, Evaporator, Wall fan, Condenser, Dryer, AHU, Ice machine and so on |
