NSK Pillow Block Bearing and Insert Bearings for Motorcycle Spare Part Engine Parts/Vertical Ladder Motor UC207

NSK Pillow Block Bearing and Insert Bearings for Motorcycle Spare Part Engine Parts/Vertical Ladder Motor UC207

YJ series unit bearing motor with single phase, 4 shaded poles are running at rated voltage of 230V,115V, 127V,Frequency is 50/60Hz. These motors will fit existing brackets used by GE, Morrill and A.O.Smith designed for quiet, efficient fan duty operation.

Send Inquiry
  • Description

    Our company adheres to the business philosophy of 'honesty is gold' and takes it as our duty to provide consumers with the best piped centeifugal fan, Centrifugal Blower Fan, Backward Curved Centrifugal Fan. The company adheres to the management policy of "integrity, quality, win-win", and provides one-stop and complete solutions for customers with the concept of "product quality, reasonable price, on-time delivery and considerate service". Because of the leading technology, the product is excellent. We are willing to cooperate sincerely with you and develop together! Our company is highly praised in the market for its exquisite production technology and strong processing ability. Our company always adheres to the business philosophy of regarding quality as life, seeking survival by reputation, promoting development through scientific and technological innovation

    Type

    Aluminum Single feet Unit bearing motor

    Shaft

    ¼” x 20 thread standard, Optional features include flatted end, smooth end, 5/16″diameter shaft. And rear shaft extension.

    Material

    Aluminum

    Bearing

    Unit bearing

    Mounting

    Five .150” diameter cored holes on rear (aluminum), three #8-36 drilled through and tapped (cast iron), and optional 2 side mounting bosses for pedestal mounting

    Operating Position

    Horizontal shaft (+/- 15°), optional all-angle, or vertical shaft up

    Leads

    Standard 18 gauge, 2 conductor. Lead cord may be terminated with 1/2” stripped wire, in-house molded plugs, eyelets, ¼” quick connects, or special terminals. Other customized lead options are available.

    Rotation

    Clockwise as viewed from back or lead end of motor. Counter clockwise is available to meet client’s requirements.

    Approvals

    UL approval(E256488 and E221116), SASO approval

    Operating temperature

    -20℃ to 50℃

    Service life

    More than 60000 hours

    Advantage

    YJ series unit bearing motor with single phase, 4 shaded poles are running at rated voltage of 230V,115V, 127V,Frequency is 50/60Hz.
    These motors will fit existing brackets used by GE, Morrill and A.O.Smith designed for quiet, efficient fan duty operation. The unit bearing motor significantly outperforms traditional shaded pole motor. With efficiencies three times higher than shaded pole motors, in addition to the reliable and quiet unit bearing design, our company provides users the most reliable and best energy savings solution for their applications.
    All of our unit bearing motors will match with a variety of mounting brackets and fan blades in order to optimize airflow and system efficiency.

    　
    Performance parameter

    MODEL

    VOLTAGE  V

    FREQUENCY
           Hz

    OUTPUT
           W

    CURRENT   A

    SPEED
           RPM

    ROTATION
           Rot

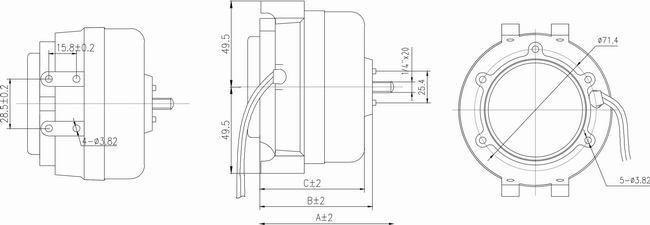

    A
    mm

    B   mm

    C    mm

    YJ2-115-A11

    115

    50/60

    2

    0.28

    1300/1550

    CW

    78

    65

    60

    YJ2-115-A12

    115

    50/60

    2

    0.28

    1300/1550

    CCW

    YJ2-230-A11

    230

    50/60

    2

    0.14

    1300/1550

    CW

    YJ2-230-A12

    230

    50/60

    2

    0.14

    1300/1550

    CCW

    YJ4-115-A11

    115

    50/60

    4

    0.32

    1300/1550

    CW

    YJ4-115-A12

    115

    50/60

    4

    0.32

    1300/1550

    CCW

    YJ4-230-A11

    230

    50/60

    4

    0.16

    1300/1550

    CW

    YJ4-230-A12

    230

    50/60

    4

    0.16

    1300/1550

    CCW

    YJ5-115-A11

    115

    50/60

    5

    0.36

    1300/1550

    CW

    YJ5-115-A12

    115

    50/60

    5

    0.36

    1300/1550

    CCW

    YJ5-230-A11

    230

    50/60

    5

    0.18

    1300/1550

    CW

    YJ5-230-A12

    230

    50/60

    5

    0.18

    1300/1550

    CCW

    YJ6-115-A11

    115

    50/60

    6

    0.43

    1300/1550

    CW

    87

    74

    69

    YJ6-115-A12

    115

    50/60

    6

    0.43

    1300/1550

    CCW

    YJ6-230-A11

    230

    50/60

    6

    0.2

    1300/1550

    CW

    YJ6-230-A12

    230

    50/60

    6

    0.2

    1300/1550

    CCW

    YJ9-115-A11

    115

    50/60

    9

    0.64

    1300/1550

    CW

    YJ9-115-A12

    115

    50/60

    9

    0.64

    1300/1550

    CCW

    YJ9-230-A11

    230

    50/60

    9

    0.32

    1300/1550

    CW

    YJ9-230-A12

    230

    50/60

    9

    0.32

    1300/1550

    CCW

    YJ14-115-A11

    115

    50/60

    14

    0.48

    1300/1550

    CW

    YJ14-115-A12

    115

    50/60

    14

    0.48

    1300/1550

    CCW

    YJ14-230-A11

    230

    50/60

    14

    0.21

    1300/1550

    CW

    YJ14-230-A12

    230

    50/60

    14

    0.21

    1300/1550

    CCW

    YJ16-115-A11

    115

    50/60

    16

    0.92

    1300/1550

    CW

    96

    83

    78

    YJ16-115-A12

    115

    50/60

    16

    0.92

    1300/1550

    CCW

    YJ16-230-A11

    230

    50/60

    16

    0.48

    1300/1550

    CW

    YJ16-230-A12

    230

    50/60

    16

    0.48

    1300/1550

    CCW


    27



    Production details

    28(001)


    FAQ

    (1)Q: Are you a manufacture factory?

    A: Yes,we are one of the leading manufacturers of fans and motors in China since 1980, Our factory occupied area of 26000square meters, located in Yinzhou district, Ningbo. We have more than 300 employees.

    (2)Q: Which product certification do you have?

    A: Our products are approved VDE certificate, UL certificate, CE certificate, ROHS certificate, CCC certificate, SASO certificate and so on.

    (3).Q: How about our company's quality control system??

    A: We have gotten IS09001:2008 certificate(SGS)

    (4).Q: How long is the warranty of your products

    A:One year after ETD

    (5).Q:What kind of trade terms and payment terms?

    A: Trade terms: EXW, FOB

    B: Payment terms: T/T, L/C

    We strive to grasp the trend of social progress and constantly provide superior NSK Pillow Block Bearing and Insert Bearings for Motorcycle Spare Part Engine Parts/Vertical Ladder Motor UC207 and problem solutions. Our company will always put the interests of customers first, because we firmly believe that the success of customers is our future. We hope to form a low-consumption, low-emission and high-efficiency operating model, and drive low-carbon operations in the industry with our own practices.
