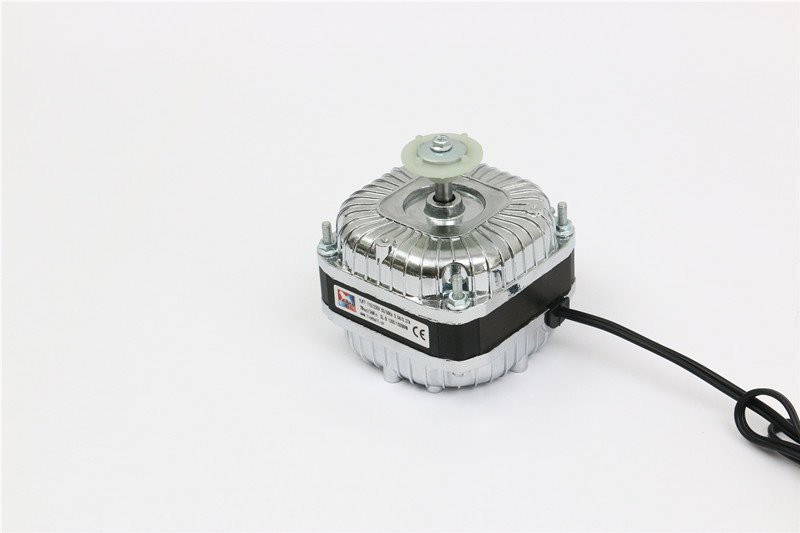

Product Introduction
| The space between the two screws | 26mm | |
Electrical connection | Jacketed cable 3x0.5 m㎡ with brass lead tips (we can supply the lead wire with different length) | |
Material | Housing | die-cast aluminium |
Stator pack | coated in black | |
Direction of air flow | "S"or "B"(depending on axial impeller used) | |
Type of protection | IP42 or IP44 | |
Insulation class | Class B | |
Approvals | CE, CCC, VDE( except 3W) and so on | |
Mode of operation | Continuous operation(S1) | |
Bearings | self-adjusting calotte sleeve bearing(mean service life of 20,000 hours in horizontal installations position) | |
Mounting position | Any, preferably horizontal | |
Condensate discharges | None | |
Mode of operation | Continuous operation (S1) | |
Motor protection | impedance switched ( combination D-H) | |
Ambient temperature | -20℃ to 50℃ | |
Mounting | Guard grille and wall ring are mounted onto the protruding thread ends of theA side.The Q-motor can also be screwed on via the mounting flanges (integrated in the bearing shields) | |
Axial impeller mounting | Mounted to the motor shaft using a plastic adapter with pulling peg and an M4 screw(combination A-D) OR M5 (combination E-H) screw. | |
Power specifications | At 60Hz, the blade angle of the axial impellers must be reduced 6° each. | |
Advantage | YJF series shaded pole motors with single phase,2 or 4 shaded poles are running at rated voltage of 220-240V, 50/60Hz, 127V, 50/60Hz, 400V, 50/60Hz or 110-120V, 50/60Hz. The motors operate with fan blades and bracket, suitable for evaporator, heater, dehumidifier, refrigerating, radiator,welding machine, etc. | |

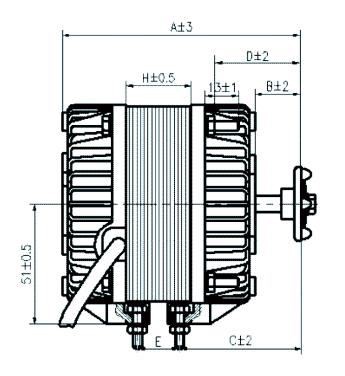

product Parameter (specification)
Product feature and application
Features of Shaded pole motor:
(1)Reasonable structure design and flexible direction of lead wire. The junction box of the cover pole motor can be rotated and installed itself.
(2) Superior shaded pole motor performance low noise, low vibration, high performance protection level
(3)Various number of options to meet the needs of various users to install thermistor
(4)The use of optimization design, with high efficiency, can produce considerable energy saving effect.
(5) Add dust proof sealing ring, heating belt, oil proof sealing ring, oil injection, special shaft extension, special flange and other requirements.
Application
Supermarket commercial freezers, refrigerator,evaporator, heater, dehumidifier, refrigerating, radiator,welding machine, etc.
Production details
Application of shaded pole motor in freezer
The shaded pole motor in the refrigerator works synchronously during the refrigeration of the compressor, blowing out the cold temperature of the evaporator, which can also be said to be the circulating fan motor. It stops when the refrigerator reaches the set temperature, that is, after the compressor stops, during automatic defrosting and when the refrigerator door is opened.
