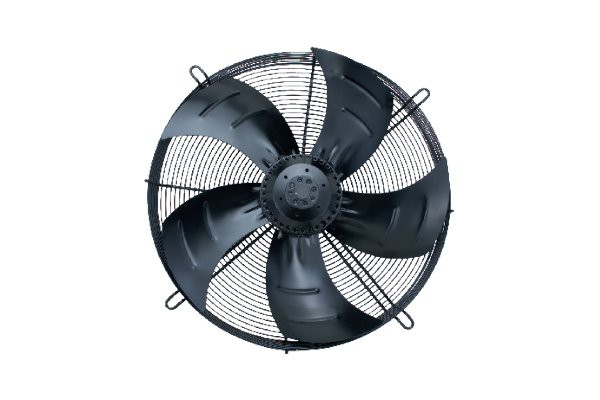

Product Introduction
| The diameter of the fan blade | 450mm | |
Material | Guard Grill | steel, phosphated and coated in black plastic |
Wall ring | sheet steel, galvanized and coated in black plastic | |
blades | sheet steel | |
Rotor | encased in aluminium | |
Number of blades | 5 | |
Direction of rotation | Suction—direction of air flow "S" counter-clockwise, | |
Blowing—direction of air flow "B" clockwise seen on rotor | ||
Type of protection | IP54 or IP44 | |
Insulation class | Class B or Class F | |
Approvals | UL, CE, CCC , ROHS and so on | |
Mode of operation | Continuous operation(S1) | |
Bearings | Maintenance- free ball bearings | |
Ambient temperature | -30℃ to 60℃ | |
Motor protection | without TOP, TOP wired internally | |
Cable exit | lateral | |
Protection class | I | |
Product Parameter (specification)
(1)For Air Compressor:
YWF450 usually use in air compressor of 11-22 KW
Model | Voltage | Frequency | Current | Input Power | Speed | Max Air Flow | Capacitor | Noise |
YWF4D450 | 380 | 50 | 0.6 | 230 | 1300 | 5300 | / | 70 |
YWF4D450H | 380 | 50 | 0.65 | 290 | 1300 | 5700 | / | 70 |
(2)For Refrigeration and others:
Model | Voltage | Frequency | Current | Input Power | Speed | Max Air Flow | Capacitor | Noise | Curve |
YWF4E450 | 230 | 50/60 | 1.1/1.5 | 250/350 | 1360/1550 | 5000/5980 | 8 | 67/72 | ①② |
YWF4D450 | 400Y | 50/60 | 0.53/0.6 | 240/330 | 1350/1550 | 5000/5980 | / | 67/72 | |
YWF6E450 | 230 | 50/60 | 0.62/0.66 | 130/150 | 930/1090 | 3350/3800 | 6 | 63/67 | ③④ |
YWF6D450 | 400Y | 50/60 | 0.35/0.31 | 115/130 | 930/1090 | 3350/3700 | / | 63/67 | |
YWF4E450-7P | 230 | 50/60 | 1.4/2.0 | 320/450 | 1300/1400 | 5800/6000 | 8 | 70/74 | ⑤⑥ |
Product feature and application
(1) Product feature:
●Compact structure
●Specialized design
●Refined process control
●Simple Installation
●High efficiency and low noise
●Long service life
Application
Ventilation | Buildings, parking lots and so on |
Refrigeration | Refrigerator, Air cooler, refrigerating machine and so on |
Heat dissipation | HAVC, Air compressor, Dehumidifier, Evaporator, Wall fan, Condenser, Dryer, AHU, Ice machine and so on |
Production details
Advantage
YWF series axial fan with high static pressure and large air flow, have single phase, three phase, and different voltage levels, and 50HZ, 60HZ, according to the client’s different needs.
Our fan YWF450 is available with different supporting structure, can meet different needs of various equipments that need high static pressure and high air flow.
Compared with normal axial fan, our fan YWF450 is equipped with higher angle of fan blade, more quantities of fan blade, and motor with higher power.
