Forward Centrifugal Fan YWFF250

Production Description

Single Inlet Forward Centrifugal fans and blowers are compact units that can be used to either pressurize or evacuate in air moving applications. The impellers are permanently mounted to the external rotors for ease of installation and maintenance-free operation. These units may be mounted in any orientation to provide maximum airflow in minimum areas.

(1)YWF External Rotor Centrifugal Fans are divided into forward centrifugal fan and backward centrifugal fan according to curved blades, which have compact structure, convenient installation, credible running, little noise, energy saving and high efficiency.

(2) Several speed ranks, adapt to both frequency conversion and voltage transformation speed changing active. Our products are widely used in duct fans, roof ventilator, air purifying equipment, air conditioning, and household appliances, etc.

(3)The voltage of the single phase motor is 220V, 50/60 Hz, and the voltage of three phase motors is 380V, 50/60Hz. We can also supply other fan motors with different voltages and frequencies according to clients' requirement.

(4)The safety grade of this series is IP54, and the insulation classes are class B and class F.

(5) The applicable ambient temperature of the fan motors used in condenser is from -30℃~60℃.

(6)The average service life of motors is over 30,000 hours.

(8) Our products have gotten UL approval, CE approval and CCC approval.

(9) Product Features

① —Material: Housing: galvanized sheet steel

Impeller: galvanized sheet steel

Rotor: Coated in black plastic

② Bearings: Maintenance- free ball bearings

③ Direction of rotation: Clockwise, seen on rotor

④All models have reached UL approval, CE approval and CCC approval

⑤The type of protection is IP54. All models are fitted with an internal Thermal Overload Protection Device

⑥ Mounting position: Shaft horizontal or rotor on bottom; rotor on top on request (Any)

⑦Insulation class is class B or class F

Performance Parameters

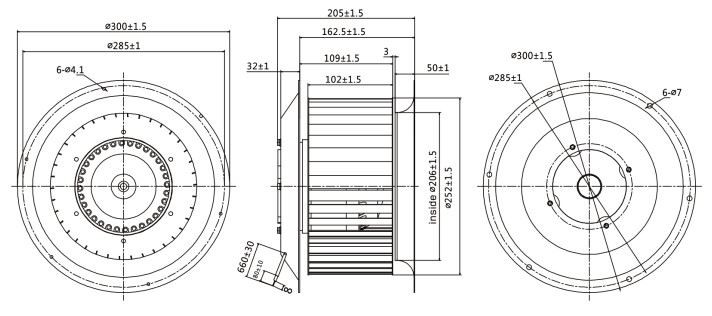

shape and the size of installation

Air volume and static pressure curve

Product feature and application

(1) Product feature:

● Compact structure

● Specialized design

● Refined process control

● Simple Installation

● High efficiency and low noise

● Long service life

(2) Application

● Condenser

● Evaporator

● Pipe fan

● Roof ventilator

● Heat dissipation and ventilation

Illustration of Models

YWF—F—2—E—250

① ② ③ ④ ⑤

①YWF: External Rotor Centrifugal Fan

②F: Forward

B: Backward

D: Double Inlet

③(2,4,6):Pole of Motor

④E: Single Phase Capacitor Operation

D: Three Phases Asynchronous Operation

⑤250: The Diameter of inlet
