product Introduction

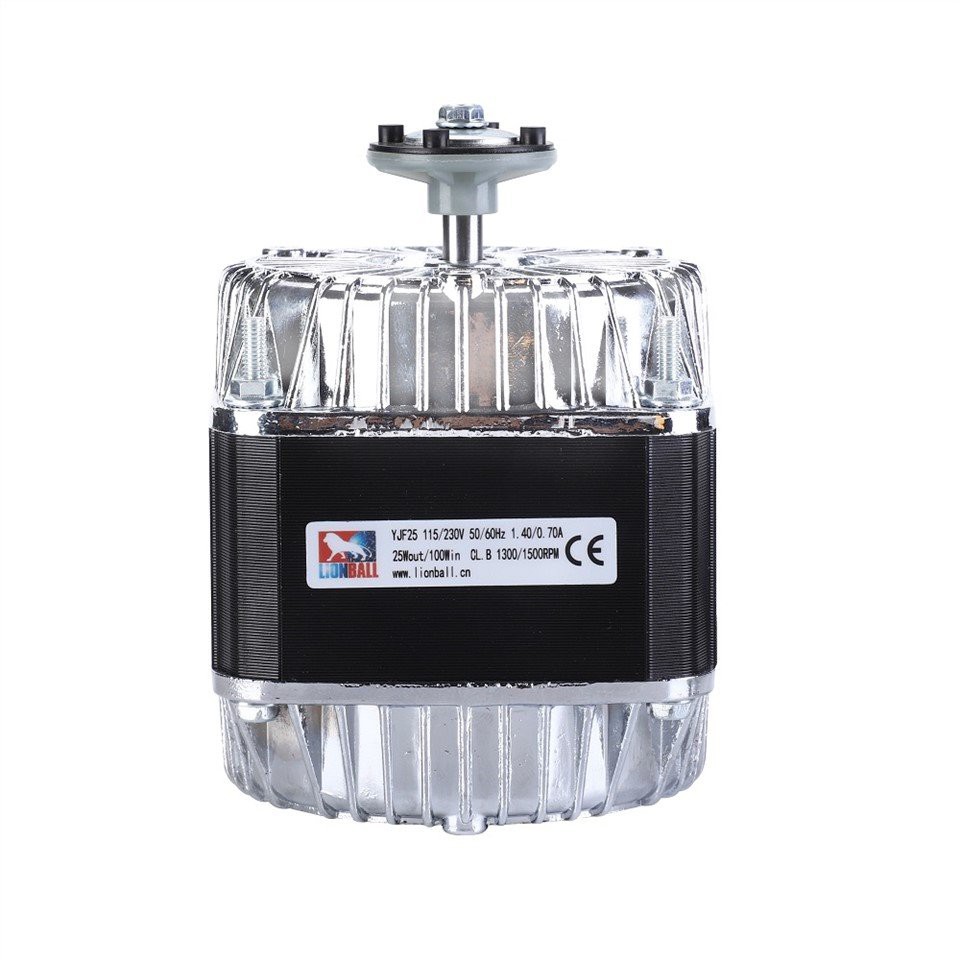

Shaded Pole Motor, also known as Shaded Pole Motor, is a kind of single-phase AC Motor, which is mainly composed of rotor assembly, stator assembly, wire package assembly, bracket assembly and connecting fasteners.The rotor assembly is mainly composed of a cast aluminum rotor, a shaft, a thrust washer to prevent the rotor from moving forward and backward and a gasket to adjust the channeling momentum.The stator assembly is mainly composed of a short circuit ring and a main stator core.The wire package assembly is mainly composed of coil, skeleton, wiring or thermal protector and related insulation wrapping materials.The bracket assembly is divided into front bracket assembly and back bracket assembly according to the different installation positions of axial extension end and non-axial extension end.

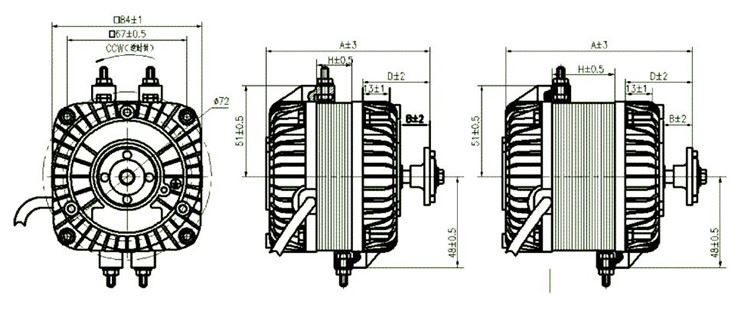

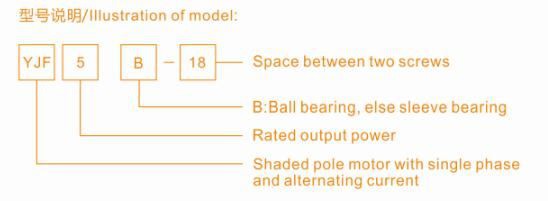

| The space between the two screws | 18mm | |
Electrical connection | Jacketed cable 3x0.5 m㎡ with brass lead tips (we can supply the lead wire with different length) | |
Material | Housing | die-cast aluminium |
Stator pack | coated in black | |
Direction of air flow | "S"or "B"(depending on axial impeller used) | |
Type of protection | IP42 or IP44 | |
Insulation class | Class B | |
Approvals | CE, CCC, VDE( except 3W) and so on | |
Mode of operation | Continuous operation(S1) | |
Bearings | self-adjusting calotte sleeve bearing(mean service life of 20,000 hours in horizontal installations position) | |
Mounting position | Any, preferably horizontal | |
Condensate discharges | None | |
Mode of operation | Continuous operation (S1) | |
Motor protection | impedance switched ( combination D-H) | |
Ambient temperature | -20℃ to 50℃ | |
Mounting | Guard grille and wall ring are mounted onto the protruding thread ends of theA side.The Q-motor can also be screwed on via the mounting flanges (integrated in the bearing shields) | |
Axial impeller mounting | Mounted to the motor shaft using a plastic adapter with pulling peg and an M4 screw(combination A-D) OR M5 (combination E-H) screw. | |
Power specifications | At 60Hz, the blade angle of the axial impellers must be reduced 6° each. | |
Product Parameter (specification)
Product feature and application
(1) Product feature:
●Reliability
●Diversification of installation
●Specialized structure design
●A wide range of applications
●low noise
●Long service life
(2)Application
Supermarket commercial freezers, refrigerator,evaporator, heater, dehumidifier, refrigerating, radiator,welding machine, etc.
Prodection details
