Single Inlet Forward Centrifugal fans and blowers are compact units that can be used to either pressurize or evacuate in air moving applications. The impellers are permanently mounted to the external rotors for ease of installation and maintenance-free operation. These units may be mounted in any orientation to provide maximum airflow in minimum areas.
Forward centrifugal blowers always require scroll housing, which is open on one side. The characteristic features of this product series are high efficiency, a low noise level, relatively small air flow with a high increase in static pressure, robust design and space-saving application.
| The diameter of Impeller | 160mm | |
Material | Housing | galvanized sheet steel |
Impeller | galvanized sheet steel | |
Rotor | Coated in black plastic | |
Direction of rotation | Clockwise, seen on rotor | |
Counter-Clockwise, seen on rotor | ||
Type of protection | IP54 | |
Insulation class | Class B or Class F | |
Mounting position | Shaft horizontal or rotor on bottom; rotor on top on request(Any) | |
Condensate discharges | Rotor-side | |
Approvals | CE, CCC,UL and so on | |
Mode of operation | Continuous operation(S1) | |
Bearings | Maintenance- free ball bearings | |
Motor protection | TOP wired internally | |
Cable exit | variable, lateral | |
Ambient temperature | -20℃ to 60℃ | |
Advantage | YWF series centrifugal fan with external motor has features of compact structure,convenient installation, credible running, little noise, energy saving and high efficiency. | |

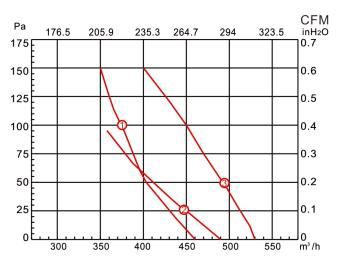

Performance parameters
| Model | Voltage | Frequency | Current | Input Power | Speed | Max Air Flow | Capacitor | Noise | Curve |
YWFF2E160 | 230 | 50 | 1.2 | 280 | 2000 | 630 | 8 | 72 | ① |
YWFF4E160 | 230 | 50 | 0.37 | 84 | 1280 | 490 | 2.5 | 66 | ② |
115 | 60 | 0.95 | 110 | 1340 | 530 | 10 | 68 | ③ |
Product feature and application
(1) Product feature:
●Compact structure
●Specialized design
●Refined process control
●Simple Installation
●High efficiency and low noise
●Long service life
(2)Application
●Condenser
●Evaporator
●Pipe fan
●Roof ventilator
●Heat dissipation and ventilation
Illustration of Models
YWF—F—2—E—200
① ② ③ ④ ⑤
①YWF: External Rotor Centrifugal Fan
②F: Forward
B: Backward
D: Double Inlet
③(2,4,6):Pole of Motor
④E: Single Phase Capacitor Operation
D: Three Phases Asynchronous Operation
⑤200: The Diameter of inlet
