Type | Cast Iron Single feet Unit bearing motor |
Shaft | ¼” x 20 thread standard, Optional features include flatted end, smooth end, 5/16″diameter shaft. And rear shaft extension. |
Material | Cast Iron |
Bearing | Unit bearing |
Mounting | Five .150” diameter cored holes on rear (aluminum), three #8-36 drilled through and tapped (cast iron), and optional 2 side mounting bosses for pedestal mounting |
Operating Position | Horizontal shaft (+/- 15°), optional all-angle, or vertical shaft up |
Leads | Standard 18 gauge, 2 conductor. Lead cord may be terminated with 1/2” stripped wire, in-house molded plugs, eyelets, ¼” quick connects, or special terminals. Other customized lead options are available. |
Rotation | Clockwise as viewed from back or lead end of motor. Counter clockwise is available to meet client’s requirements. |
Approvals | UL approval(E256488 and E221116), SASO approval |
Operating temperature | -20℃ to 50℃ |
Service life | More than 60000 hours |
Advantage | YJ series unit bearing motor with single phase, 4 shaded poles are running at rated voltage of 230V,115V, 127V,Frequency is 50/60Hz. |
performance parameter
| MODEL | VOLTAGE V | FREQUENCY | OUTPUT | CURRENT A | SPEED | ROTATION | A mm | B mm | C mm |
YJ2-115-C11 | 115 | 50/60 | 2 | 0.28 | 1300/1550 | CW | 80 | 67 | 62 |
YJ2-115-C12 | 115 | 50/60 | 2 | 0.28 | 1300/1550 | CCW | |||
YJ2-230-C11 | 230 | 50/60 | 2 | 0.14 | 1300/1550 | CW | |||
YJ2-230-C12 | 230 | 50/60 | 2 | 0.14 | 1300/1550 | CCW | |||
YJ4-115-C11 | 115 | 50/60 | 4 | 0.32 | 1300/1550 | CW | |||
YJ4-115-C12 | 115 | 50/60 | 4 | 0.32 | 1300/1550 | CCW | |||
YJ4-230-C11 | 230 | 50/60 | 4 | 0.16 | 1300/1550 | CW | |||
YJ4-230-C12 | 230 | 50/60 | 4 | 0.16 | 1300/1550 | CCW | |||
YJ5-115-C11 | 115 | 50/60 | 5 | 0.36 | 1300/1550 | CW | |||
YJ5-115-C12 | 115 | 50/60 | 5 | 0.36 | 1300/1550 | CCW | |||
YJ5-230-C11 | 230 | 50/60 | 5 | 0.18 | 1300/1550 | CW | |||
YJ5-230-C12 | 230 | 50/60 | 5 | 0.18 | 1300/1550 | CCW | |||
YJ6-115-C11 | 115 | 50/60 | 6 | 0.43 | 1300/1550 | CW | 89 | 76 | 71 |
YJ6-115-C12 | 115 | 50/60 | 6 | 0.43 | 1300/1550 | CCW | |||
YJ6-230-C11 | 230 | 50/60 | 6 | 0.2 | 1300/1550 | CW | |||
YJ6-230-C12 | 230 | 50/60 | 6 | 0.2 | 1300/1550 | CCW | |||
YJ9-115-C11 | 115 | 50/60 | 9 | 0.64 | 1300/1550 | CW | |||
YJ9-115-C12 | 115 | 50/60 | 9 | 0.64 | 1300/1550 | CCW | |||
YJ9-230-C11 | 230 | 50/60 | 9 | 0.32 | 1300/1550 | CW | |||
YJ9-230-C12 | 230 | 50/60 | 9 | 0.32 | 1300/1550 | CCW | |||
YJ14-115-C11 | 115 | 50/60 | 14 | 0.48 | 1300/1550 | CW | |||
YJ14-115-C12 | 115 | 50/60 | 14 | 0.48 | 1300/1550 | CCW | |||
YJ14-230-C11 | 230 | 50/60 | 14 | 0.21 | 1300/1550 | CW | |||
YJ14-230-C12 | 230 | 50/60 | 14 | 0.21 | 1300/1550 | CCW | |||
YJ16-115-C11 | 115 | 50/60 | 16 | 0.92 | 1300/1550 | CW | 98 | 85 | 80 |
YJ16-115-C12 | 115 | 50/60 | 16 | 0.92 | 1300/1550 | CCW | |||
YJ16-230-C11 | 230 | 50/60 | 16 | 0.48 | 1300/1550 | CW | |||
YJ16-230-C12 | 230 | 50/60 | 16 | 0.48 | 1300/1550 | CCW |
Product feature and application
(1) Product feature:
●Reliability
●Diversification of installation
●Specialized structure design
●A wide range of applications
●low noise
●Long service life
(2)Application
Our cast iron double feet unit bearing motors are primarily used in commercial refrigeration, condensing unit and unit heater, ice machine. They can be used in many applications demanding high efficiency and dependability with output ratings between 2-16 watts.
Prodection details
Our Certificate
IOS 9001

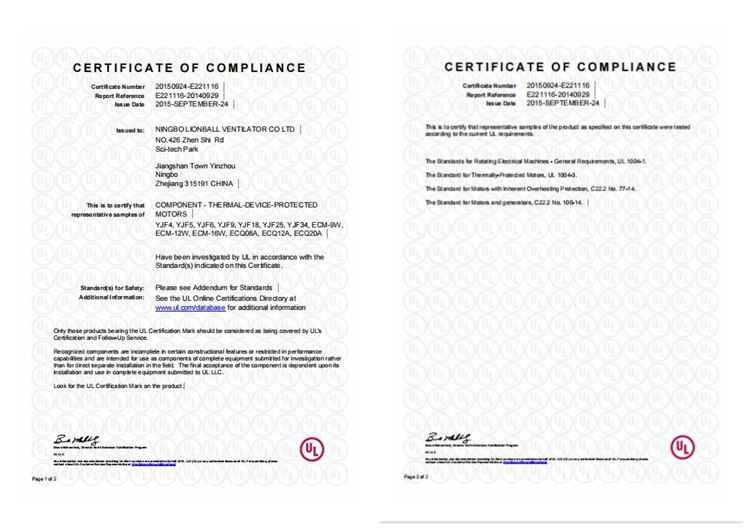

UL certificate
Our products have many certification, such as CE, CCC, UL, RosH, VDE and so on.
We can also certify according to customer requirements.
