Shaded Pole Condenser Fan Motors

Model
YJF3
YJF5
YJF7
YJF10
YJF12
YJF14
YJF16
YJF18
YJF20
YJF25
YJF34

Send Inquiry
  • Description

    Product Introduction:

    Shaded pole motor is a multi-performance motor in the refrigeration industry, which is widely used in refrigeration fields such as refrigerators, freezers and refrigeration dryers.

    The design and manufacturing process of the motor has the advantages of low noise, low vibration, high efficiency and high precision. In addition, shaded pole motors also have the characteristics of high reliability and long service life.

    During operation, there is no need for additional transmission devices, and the motor can be directly connected to the compressor, ensuring stable and reliable operation. The precision control system of the motor can achieve automatic adjustment and control, ensuring the stability and performance of the product



    Product advantages:

    1. Long service life

    2. Compact structure

    3. Low noise

    4. Stable operation

    5. Green and energy-saving



    Product features:

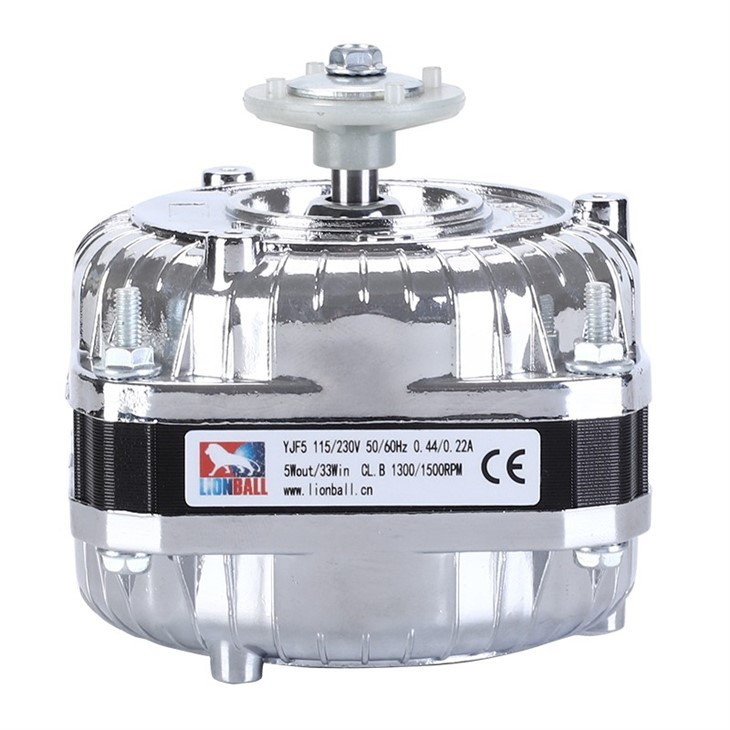

    YJF series shaded pole condenser fan motors with single phase,2,4 shaded poles are running

    at rated voltage of 220-240V,50/60Hz,127V50/60Hz,400V50/60Hzor 110-120V50/60Hz.3 to 34 Watt output power, which is relative to the stack length. Usually with bracket.

    Operating with fan blades, suitable for evaporator, heater dehumidifier refrigerating, radiator, welding machine, etc.

    The insulation class of motors is B, and the protection class of that is IP42. On request lP44 is available.

    The motors can be equipped with a thermal protector as per the client's requirements. This protector will cut off the current once the winding temperature reaches 135℃±10℃, thereby ensuring the safety and longevity of the motor.The useable ambient temperature is from -20℃ to +50℃(Can be made to special requirement -40℃ to +70℃). The service life of motors is more than 30000 hours.

    Most of shaded pole motors passed CE, VDE,ROHS, UL(E221116) and ccc approval.



    The scope of application of the product:

    Widely used in various refrigeration and refrigeration equipment. Its main application scope includes commercial refrigerators, refrigerators, food display cabinets, pharmaceutical refrigerators, cold storage, etc.
